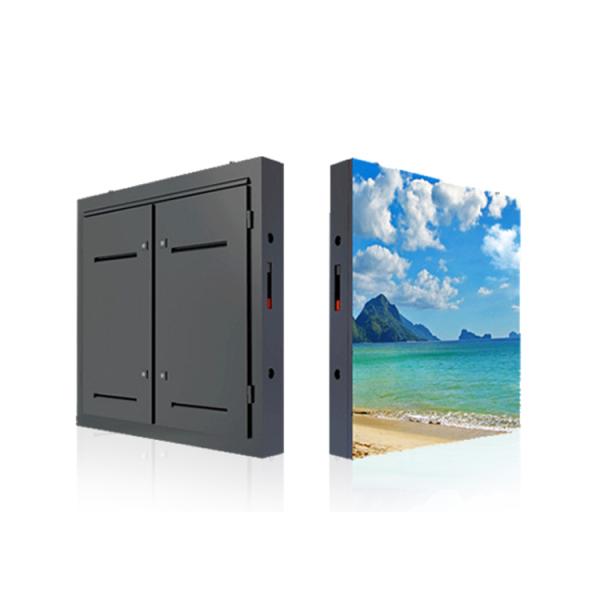

Energy Saving Outdoor Fixed LED Display quick and easy installation
9-BOF-B.pdf
Feature:
1. High difinition, wonderful visual performance;
2.High refresh rate and high contrast, clear picture without flicker and distortion;
3. Fast Installation and Easy Maintenance
4.The products based on CE, FCC, RoHS Certification;
Advantage:
1. Professional installation instructions
Our company also can arrange our engineers to provide you professional installation guide and training for free via remote control, video and phone.
2. Promising the goods quality
All of products will be tested many times and 100% promise the products are well before shipping.
3. Customized products
The products can be customized according to your projects and offer you the CAD drawing for free.
4. After-sale service
We guarantee all of our displays, modules, spare parts for full two years. During the time, we will replace or fix our goods for free if there is something wrong with them.
Specification
| Model | BOF-B |
| Pixel Pitch | 6.67mm |
| Pixel Density | 22376 pixels/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 960mm*960mm |
| Cabinet Resolution | 144*144 pixels |
| Cabinet Weight | 65kg |
| Cabinet Material | Cold steel |
Ingress Protection
(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/6 scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg. ) | 300W/m2 |
| Input Voltage | AC 110/220±10%
50~60Hz |
Temperature
(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH
/ 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
Service
1.24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
FAQ:
Q1. Can I have a sample order for LED Display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 10-15days for order quantity more than
Q3. Do you have any MOQ limit for LED light order?
A: Low MOQ, 1PC for sample checking is available
Q4. Is it OK to print my logo on LED light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
